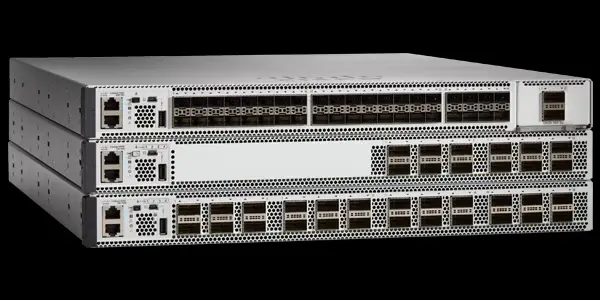

Catalyst 9500 high performance models 32-ports 100G/40G fiber

C9500-32C. High-density fiber models for campus core and distribution. 32-port 100G/40G (QSFP28). Based on Cisco UADP 3.0 ASIC.Catalyst 9500 Series switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise Virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans, while supporting a wide array of optics. Catalyst 9500 Series switches provide operational choice of Cisco Catalyst Center, or Meraki cloud monitoring.

Product Details

isco Catalyst 9500 models

● The Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) ready for next-generation technologies with its programmable pipeline, microengine capabilities, and template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality-of-Service (QoS) entries.

● Up to 6.4 Tbps switching capacity with up to 2 Bpps of forwarding performance.

● Up to 36 MB of unified buffer per ASIC.

● Intel 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based application hosting.

● Up to 32 nonblocking 100 Gigabit Ethernet QSFP28 ports.

● Up to 32 nonblocking 40 Gigabit Ethernet QSFP+ ports.

● Up to 48 nonblocking 25 Gigabit Ethernet SFP28 ports.

● Up to 48 nonblocking 10 Gigabit Ethernet SFP+ ports.

● Scalable Layer 3 routing (IPv4, IPv6, and multicast) tables and Layer 2 switching tables.

● Hardware support for Application Hosting.

● IEEE 802.1ba AV Bridging (AVB) built in to provide a better AV experience through improved time synchronization and QoS.

● Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy, making it suitable for distribution and synchronization of time and frequency over the network.

● Support for both static and dynamic NAT and Port Address Translation (PAT).

● Cisco StackWise Virtual technology, a network system virtualization technology that increases operational efficiency and boosts nonstop communications and scaled system bandwidth. Multichassis EtherChannel can be configured across StackWise-Virtual members for high resiliency.

● Platinum-rated (Greater than 90% efficient) AC and/pr DC power supplies.

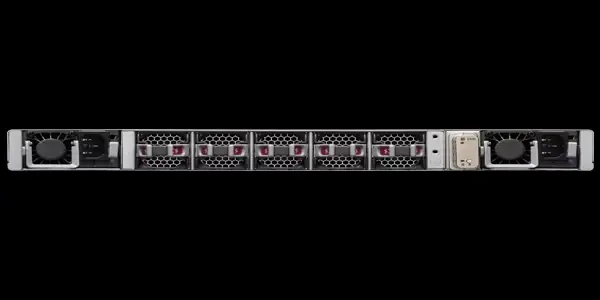

● Field-replaceable fan-tray units.

● Meraki Cloud monitoring option.
